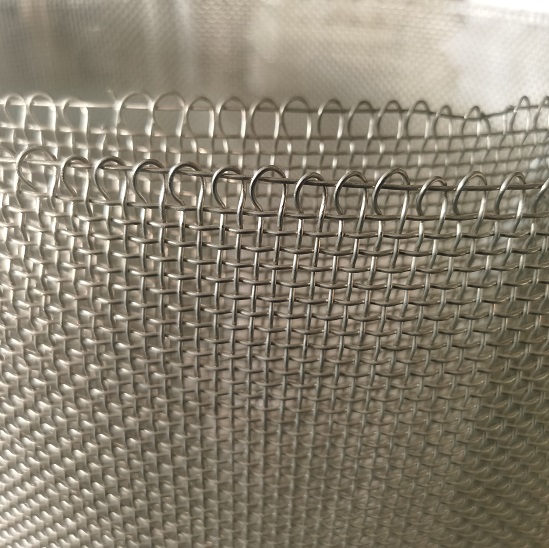

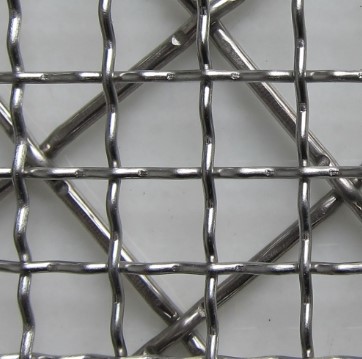

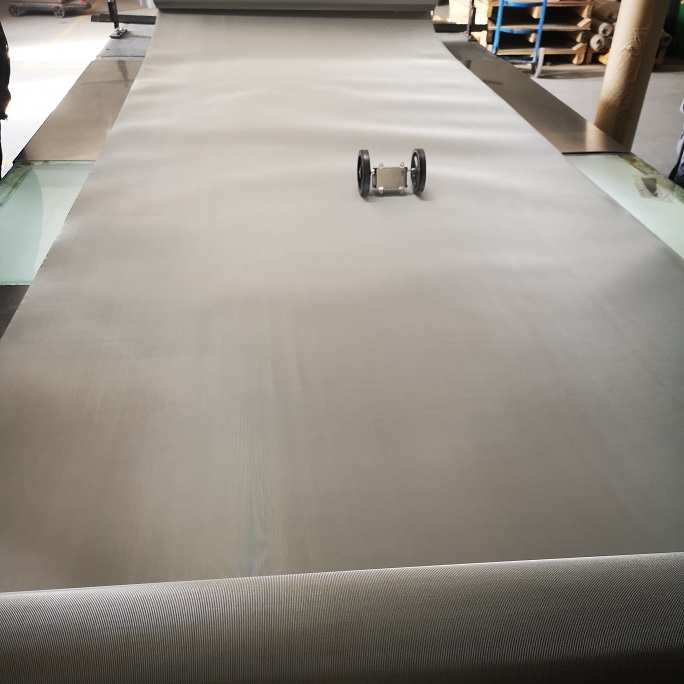

Stainless Steel Wire Mesh

Materials: SUS302,304,316,304L,316L Stainless steel wire mesh

Weaving: Plain weaving ,twill weaving ,dutch weaving.

Characteristics: The products has high acid-resisting, alkali-resisting,anti-temperature and wear-resisting

Materials: SUS302,304,316,304L,316L Stainless steel wire mesh

Weaving: Plain weaving ,twill weaving ,dutch weaving.

Characteristics: The products has high acid-resisting, alkali-resisting,anti-temperature and wear-resisting

Using: Used in mine, oil industry ,medicine ,chemical ,foodstuff and machine etc.

Specification:

Specification of Stainless Steel Wire

Mesh	Wire Diameter		Aperture		Open Area	Weight(LB） /100 Square Foot
Mesh	Inch	mm	Inch	mm	Open Area	Weight(LB） /100 Square Foot
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63

Plain-Twill Weaving

Mesh	Aperture	Absolute filter value (μm)	Nominal filter value (μm)
8X85	.014X.0126	318 － 340	250 － 255
12X64	.024X.0165	270 － 285	200 － 205
14X88	.020X.013	225 － 245	150 － 155
20X150	.0098X.007	155 － 165	100 － 105
24X100	.015X.010	115 － 125	80 － 85
30X150	.009X.007	95 － 100	65 － 70
40X200	.007X.0055	65 － 70	55 － 60
50X250	.0055X.0045	55 － 60	40 － 45
80X400	.0049X.0028	43 － 48	35 － 40

Mesh	Aperture	Absolute filter value (μm)	Nominal filter value (μm)
20x250	.0098x.0079	110-120	98-105
30x360	.0098x.0060	90-100	80-84
40x560	.0070x.0040	70-75	47-52
120x400	.0040x.0025	50-55	37-43
120x160	.0040x.0025	40-45	28-32
80x700	.0040x.0030	35-40	24-26
200x600	.0024x.0018	28-32	19-21
165x800	.0028x.0020	24-26	14-16
165x1400	.0028x.0016	16-18	9-11
200x1400	.0028x.0016	12-14	5-6
250x1400	.0022x.0016	11-12	3-4
325x2300	.0015x.0010	8-9	2-3
